Low power supply
AC DC Charging module

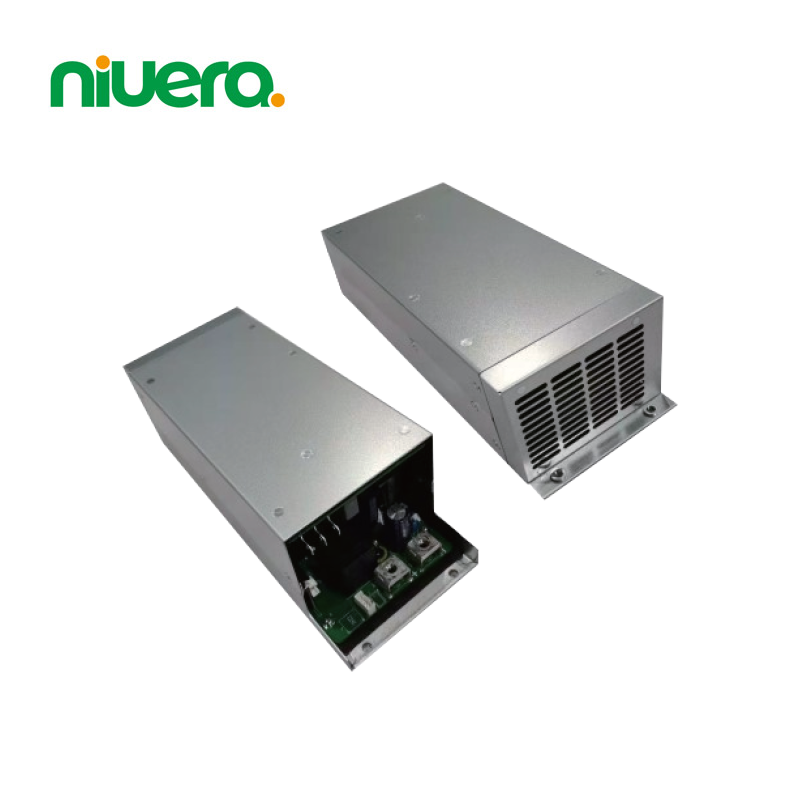

Electric car Charging power Module
Super wide constant power.
Low power consumption high efficiency.
Digital Control and Intelligent Design.
All-round support
Support CE,ETL Certificate.
- Product Features
- Product Parameters
Product Features
Product Parameters
Electrical Specifications | Product Model | XNY B3200-3308 |
| Input voltage | 90~265Vac | |
| AC input frequency | 47~63Hz | |
| Maximum Power | 3200W | |
| Output voltage | 150~450Vdc | |
| Maximum input voltage | 300Vac | |
| Maximum input current | 16A | |
| Power Factor | ≥0.99 | |
| Peak efficiency | ≥92.5% | |
| Output voltage accuracy | ≤±1% |
Features | Communication interface | Use RS485 communication or CAN communication |
| Noise | 55dB | |
| Cooling method | Rectifier module equipped with fan | |
| Protection design | Output overcurrent protection, Output short circuit protectionOutput undervoltage protection,Output overvoltage protectioninput overvoltage protection, input undervoltage protection,low voltageinput power reduction protection, overtemperature protection | |
Usage Environment | Protection level | IP20 |
| Operating temperature | -20°C~55°C(can start normally at-40°C) | |
| Relative Humidity | 0~93% | |
| Altitude | 0~4000m (based on 2000 m, the maximum temperature standard decreases by 1°Cfor every200 mincrease in altitude) | |
| Storage temperature | -40°℃~70°C |
Product Features | Dimensions (W*D*H) | 102.7x273.8x83.8mm |
| Weight | <2.6kg |
