Low power supply
AC DC Charging module

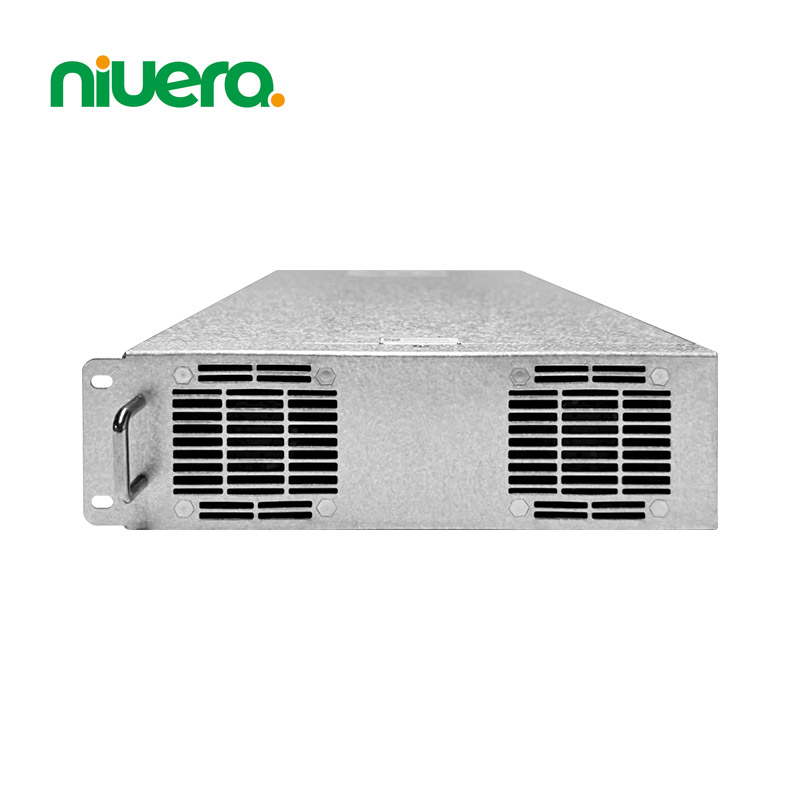

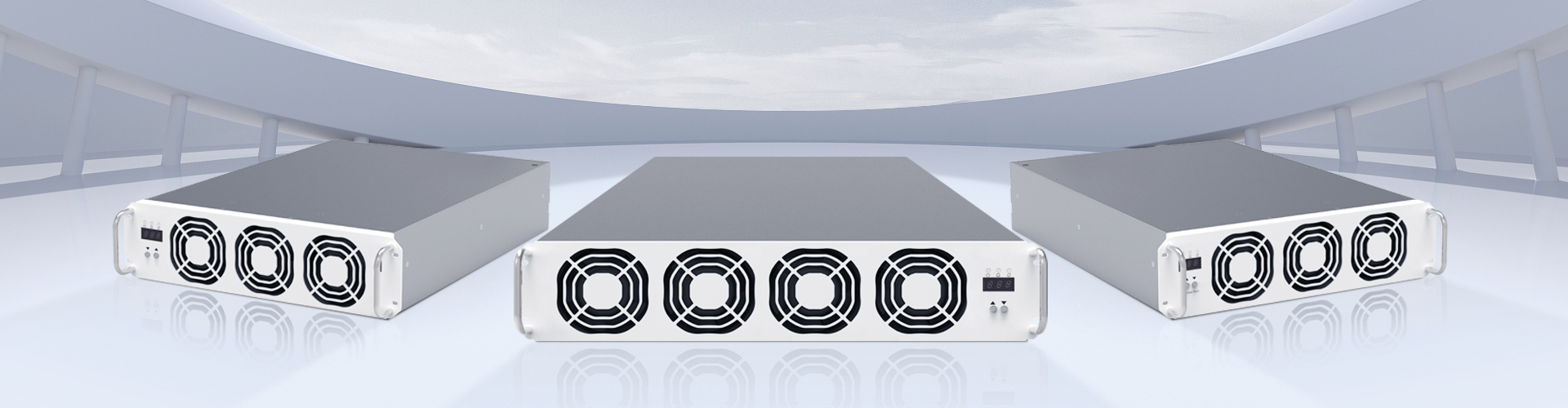

Electric car Charging power Module
Super wide constant power.
Low power consumption high efficiency.
Digital Control and Intelligent Design.
All-round support
Support CE,ETL Certificate.
- Product Features
- Product Parameters
Product Features

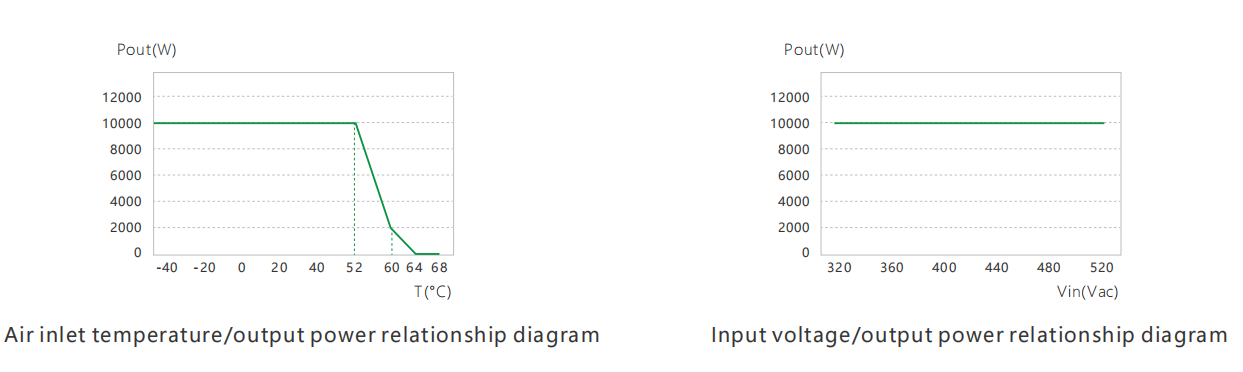

Product Parameters
Electrical Specifications | Product Model | XNY 10kT-100100 |
| Input voltage | 260~520Vac | |
| Maximum power | 10000W | |
| Rated input voltage | 380Vac | |
| Maximum input voltage | 530Vac | |
| Maximum input current | 20A | |
| Efficiency | ≥94% | |
| Power factor | ≤5% | |
| Leakage current | <10mA |
Output Characteristics | Adjustable output voltagerange | +30Vdc~+120Vdc |
| Output current range | 5~100A | |
| Output Voltage | 100Vdc | |
| Maximum output current | 100+1A | |
| Output currentaccuracy | ≤+1% @Output≥60V Output ≥20A | |
Working Environment | Work Temp | -20'C~65'℃(-40°Ccan start normally) |
| Storage Temp | -40℃~80℃ | |
| Relative Humidity | 0'~93°C relative humidity(non-condensing) |
Product Characteristics | Communication Function | The module uses CAN communication |
Protection Function | Outputovercurrent protection ,Output short circuit protectionOutputundervoltage protection,Output overvoltage protection.Input currentlimiting ,Phase loss protection ,Over temperature protectionInput overvoltage protection , Input undervoltage protection ,Communication failure | |
| Cooling Method | Forced air cooling | |
| Size(W*D*H) | 212.3x383.8x70mm | |
| Weight | <6.5kg | |
| Housing lP protection grade | IP20 |
Note * The product is constantly updated, please refer to the latest information
