Super wide constant power.
Low power consumption high efficiency.
Digital Control and Intelligent Design.
All-round support
Support CE,ETL Certificate.
- Product Features
- Product Parameters
Product Features
High-efficiencylGBT+ Sic MOS
New Generation High-speed Digital
+ Sic Diode Processing TI Chip
Byusing 1200V silicon carbide MOs, 1200V silicon carbide Dopt Ti high-performance dual-core architecture DSP
diodehigh-efficiencylGBT,magneticintegration technology, dual-core 32-bit CPU, main frequency up to 100MHz
and multi-phase interleaved parallel technology . powerfulprocessing capability and efficient multi-
tasking performance toobtain lower harmonics and
higher precision control capabilities
Full Glue Filling TechnologyLong Lifespan
Intelligent Air Cooling DesignLow Noise.
The full qlue filling process is adopted to meet various Ultra-low EMl design andintelligent fan control
harsh usage scenarios; The unique air duct desiagn technology makethe productlower noise and more
technology improvesthe heat dissipation efficiency and user-friendly .
ensures a service life of more than 5 years.
Product Parameters
Input | Product Model | XSC60KFGEU-FAC |
| Input voltage range | 260~485VAC | |
| Input frequencyrange | 45~65HZ | |
| Power factor | ≥0.99 | |
| Total harmonic distortion(THD) | ≤5% | |
| Efficiency | ≥97% |
Output | Constantpowerrange | 60KW(300~1000V) |
| Output current range | 0~200A | |
| Steady flow accuracy | ≤±1% | |
| Voltage stabilization accuracy | ≤±0.5% | |
| Current balancing accuracy | ≤±5% | |
| CAN protocol | maximum 30 |
Output high voltagemode | Output voltage range | 200~1000Vdc |
| Rated output voltage | 1000Vdc | |
| Output current | 60A | |
Output Low voltagemode | Output voltage range | 150~500Vdc |
| Rated output voltage | 500Vdc | |
| Output current | 120A |
Product characteristics | MTBF | 120K hrs |
| Size(W*D*H) | 424x573x84mm | |
| Weight | ≤29kg | |
| Fan noise | <65dB | |
Environmentalcondition | Protection level | IP20 |

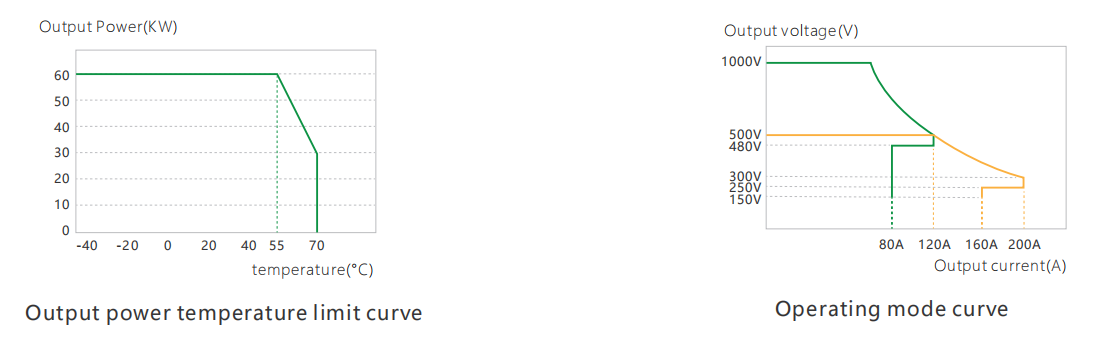

| Ambient temperature | -40'C~70°C Use with derating above 55°C | |
| Storage temperature | -40'C~85°C | |
| Cooling fan | Intelligent air cooling |
Protectionfunction | Short circuit protection | After short circuit protection, the module has no output and automaticallyrestarts |
Output overvoltage protection point | 1050V+10V(manual recovery, starts locking mode after four times overvoltage) | |
| Over temperature protection | When the detection temperature reaches the preset value, it will automatically protect |
